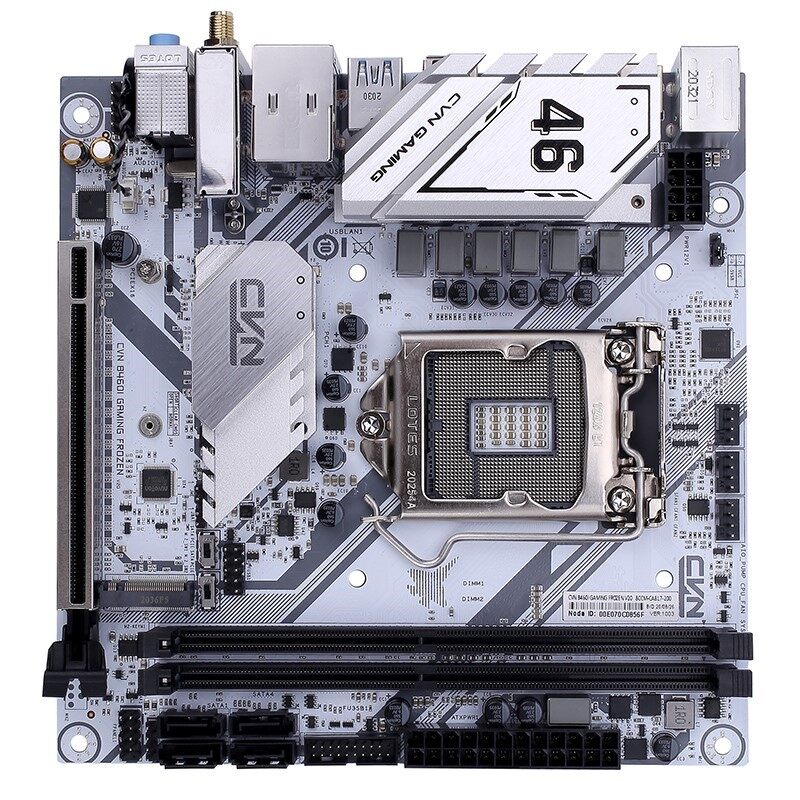

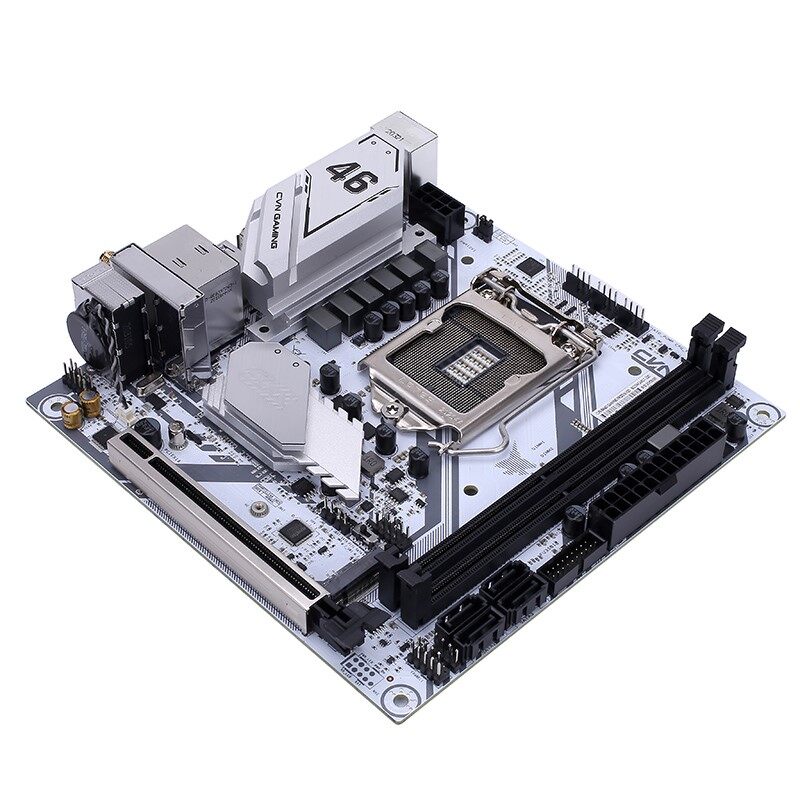

CVN B460I GAMING FROZEN V20

•RTL8111H Gigabit LAN;
•ALC662 sound card chip;
•1 M.2 slot, support SATA & PCIe x4 & Intel OPTANE SSD;
•1 WiFi/BT module slot (onboard Intel AX200 Wi-Fi6 network card);
• HDMI+DP display interface;
• 6 USB3.2 Gen1 (5* Type-A+1* Type-C) ports, 4 USB2.0 ports;
• 1 CPU fan socket, 1 system fan socket, 1 A water-cooled fan power interface;
•All USB interfaces support shutdown and live power;
•Six protection technologies, product operation is more stable;
•200 procedures are strictly tested and quality is guaranteed;
•PCB atomization process is fully upgraded;

Mã: MAIN-COLOR-000004 Danh mục: ,
Motherboard series Intel series, CVN series
chipset Intel B460
CPU support Support Intel LGA1200 interface Comet Lake-S series processors (TDP: 65W)
Memory support Provides 2 memory module slots, single memory supports up to 32GB capacity, total memory capacity up to 64G, supports XMP memory, supports dual-channel DDR4-2933/2800/2666/2400/2133MHz memory, warm reminder: memory overclocking frequency It also depends on the overclocking performance of the CPU and memory itself!
Graphics card support 1 PCI Express 3.0×16 slot
Storage interface The motherboard provides 4 SATA3.0 6Gb/s hard disk interfaces, supporting RAID0, 1, 5, 10
extension port IO: 1 set of PS2 mouse and keyboard ports, 1 DP port, 1 HDMI port, 2 USB2.0 ports, 4 USB3.2 Gen1 ports (3*Type-A+1* Type-C) ports, 1 One gigabit network interface, one WIFI antenna interface, and one 6-hole 8-channel audio interface. Onboard: 1 USB2.0 extension pin, 1 USB3.2 Gen1 Type-A extension pin
Expansion slot 1 PCI Express 3.0×16 slot, 1 WiFi/BT module slot (onboard Intel AX200 Wi-Fi 6 network card), 1 M.2 slot (support SATA & PCIe x4 & Intel OPTANE SSD, support 2242 2280 size SSD, data transfer rate up to 32Gb/s. There are two sets of switches on the motherboard (the silkscreen is M.2_SW1 and M.2_SW2) for switching between PCI-e x4 & Intel OPTANE and SATA SSD.)
System BIOS 128M UEFI, support multiple languages
Power management Support ACPI S3/S4/S5/G3, support PS2 mouse/keyboard wake-up, support USB wake-up, network S5 wake-up, support scheduled boot, call boot
Hardware monitoring CPU fan/system fan speed controllable, CPU temperature monitoring, motherboard temperature monitoring, and each group voltage monitoring
Onboard network card RTL8111H Gigabit LAN
Onboard sound card ALC662 sound card chip
Motherboard specifications 170mm*170mm ITX
Other functions All USB ports support the power-off function. Note: The JPS2 jumper sets the power-off function of the rear USB2.0 interface, and the BIOS option sets the power-off function of the front USB interface and the rear USB3.2 Gen1 interface
