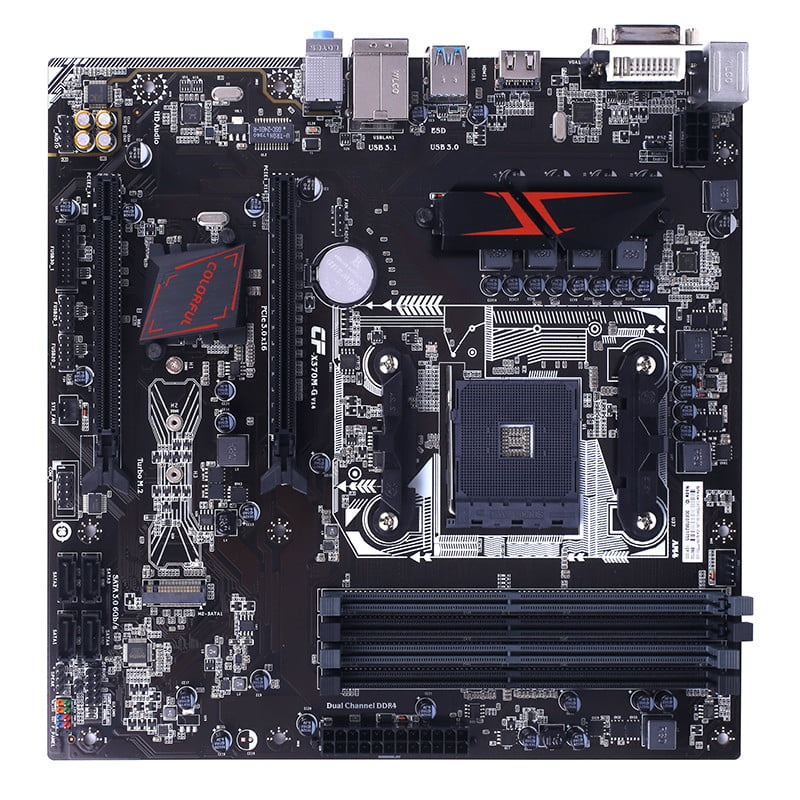

Mainboard Colorful BATTLE AXE C.X370M-G DELUXE V14

Liên hệ

support AMD AM4 APUs
4*DDR4 DIMMs
4*SATA3.0 ports
1*M.2 slots,support PCIE and MSATA channels M.2 SSD
6-ch audio chipset
Onboard 1000M LAN
VGA+DVI+HDMI ports
4*USB2.0、4*USB3.0 & 2*USB3.1 ports(including the header)

20191015111251 394220191015111259 061520191015111323 145420191015111332 668320191015111341 799520191015111344 469520191015111349 904320191015111403 721220191015111408 612020191015111411 2567

Motherboard SeriesAMD chipset,BATTLE-AX series
ChipsetAMD X370
Processorsupport AMD AM4 APUs
Memory4 DIMM slots,support dual channel DDR4 2666(OC)/2600(OC)/2400/2133MHZ memory
Graphics Support1*PCI Express3.0X16 slot
SATA Ports4*SATA3.0 6Gb/s ports
Board I/O1*PS2 ports,2*USB3.0、2*USB3.1 ports,1*RJ45 lan,3*audio ports(6-channel support),1*VGA+DVI port,1*HDMI port; onboard: 2*9-pin USB2.0 header, 1*19-pin USB3.0 header
Expansion Slots1*PCI Express3.0X4 slot,1*M.2 slot
BIOS128M UEFI
Power Managementsupport 95W processors
Hardware MonitorCPU Fan speed Controlled,SYSTEM Fan speed Monitoring,CPU Temperature Monitoring,System Temperature Monitoring,and Voltage monitoring
LANOnboard 1000M LAN,Provides 10/100/1000Mb Ethernet
Audio6-Channel audio chipset
Configuration245*245mm mATX
Other FeaturesSupport S3, S4, S5 wake-up; Support USB,KB/MS wake-up; Support phone call startup, timing boot, network S5 wake-up
